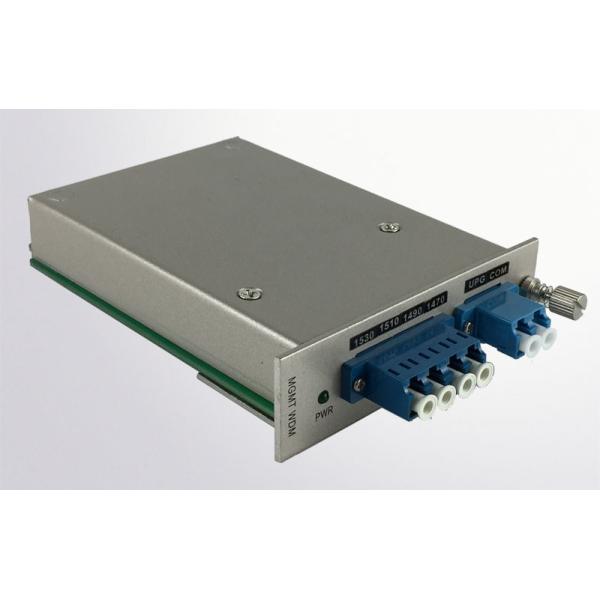

CWDM Manageable Fiber Optic Media Converter 4 / 8Ch Mux / Demux

  • 1
  • 2

Brand Name : Fiberroad

Model Number : FR-6801

Certification : CE ISO9000 SGS FCC

Place of Origin : ShenZhen China

MOQ : 1pcs

Price : Pls send request details

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs/Month

Delivery Time : 2-3 workdays

Packaging Details : Standard neutral or brand packing

Inertion Loss Temperature Sensitivity (dB/℃) : <0.005

Wavelength Temperature Shifting (nm/℃) : <0.002

Polarization Dependent Loss (dB) : <0.1

Polarization Mode Dispersion : <0.1

Directivity (dB) : >50

Return Loss （dB） : >45

Contact Now

CWDM Manageable Fiber Optic Media Converter 4 / 8Ch Mux / Demux

Fiber Optic Media Converter Introduction

16-slot multifunctional management system is a Ethernet and SDH transmission equipment , support mutiple services including managed media converter card, OEO Converter card, 1+1 protection switching card, CWDM/DWDM MUX/DEMUX Card, etc. supports protocols like SNMP, WEB, CONSOLE and TELNET , with a strong management function , and operate easily to meet different customer's requirement.

Fiber Optic Media Converter Key Features

  • Low Insertion Loss
  • Wide pass band
  • High Channel Isolation
  • High Stability and reliability
  • Epoxy-free on Optical Path
  • Access Network
  • powerful network management functions

Fiber Optic Media Converter Specification

CWDM

Parameter

4 Channel

8 Channel

Mux

Demux

Mux

Demux

Channel Wavelength (nm)

1270~1610

Center wavelength Accuracy (nm)

±0.5

Channel Spacing (nm)

20

Channel Passband (@-0.5dB bandwidth (nm)

>13

Insertion Loss (dB)

≤1.6

≤2.5

Channel Uniformity (dB)

≤0.6

≤1.0

Channel Ripple (dB)

0.3

Isolation (dB)

Adjacent

N/A

>30

N/A

>30

Non-adjacent

N/A

>40

N/A

>40

Inertion Loss Temperature Sensitivity (dB/℃)

<0.005

Wavelength Temperature Shifting (nm/℃)

<0.002

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mW)

300

Opterating Temperature (℃)

0~+70

Storage Temperature (℃)

-40~85

Package dimension (mm)

156(L)x128(W)x32(H)

DWDM

Parameter

4 Channel

8 Channel

Mux

Demux

Mux

Demux

Channel Wavelength (nm)

ITU 100GHz Grid

Center wavelength Accuracy (nm)

±0.1

Channel Spacing (nm)

100

Channel Passband (@-0.5dB bandwidth (nm)

>0.25

Insertion Loss (dB)

≤1.8

≤3.7

Channel Uniformity (dB)

≤0.6

≤1.0

Channel Ripple (dB)

0.3

Isolation (dB)

Adjacent

N/A

>30

N/A

>30

Non-adjacent

N/A

>40

N/A

>40

Inertion Loss Temperature Sensitivity (dB/℃)

<0.005

Wavelength Temperature Shifting (nm/℃)

<0.002

Polarization Dependent Loss (dB)

<0.1

<0.1

Polarization Mode Dispersion

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mW)

300

Opterating Temperature (℃)

0~+70

Storage Temperature (℃)

-40~85

Package dimension (mm)

156(L)x128(W)x32(H)
